Description

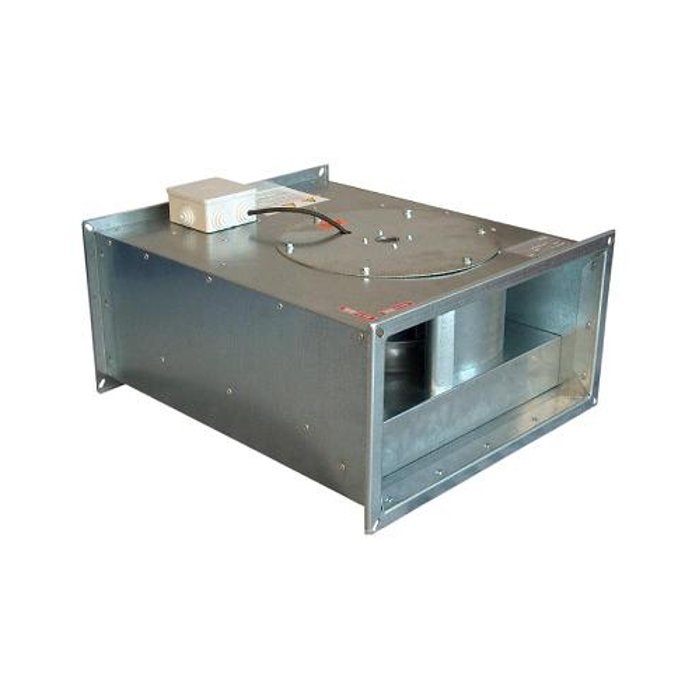

The AxB series represents and easy and not expensive solution for the installation of centrifugal fans in ducted systems. It is designed for a practical and quick installation into rectangular section ducted systems.
The series foresees models with 2,4 and 6 poles, three-phase and single-phase motors. The external rotor motor, perfectly speed controllable, is cooled by the airflow itself and does not exceed the dimensions of the fan casing. The impeller is single inlet backward curved for models 4×2, 5×25 and 5×3 and forward curved for the other models.
The casing is flanged at both ends for simple duct fitting. The electrical wirings are hosted in a suitable box placed outside the casing for an easy connection and accessibility. This series is suitable to convey clean air with a temperature range from -10°C to 60°C.
