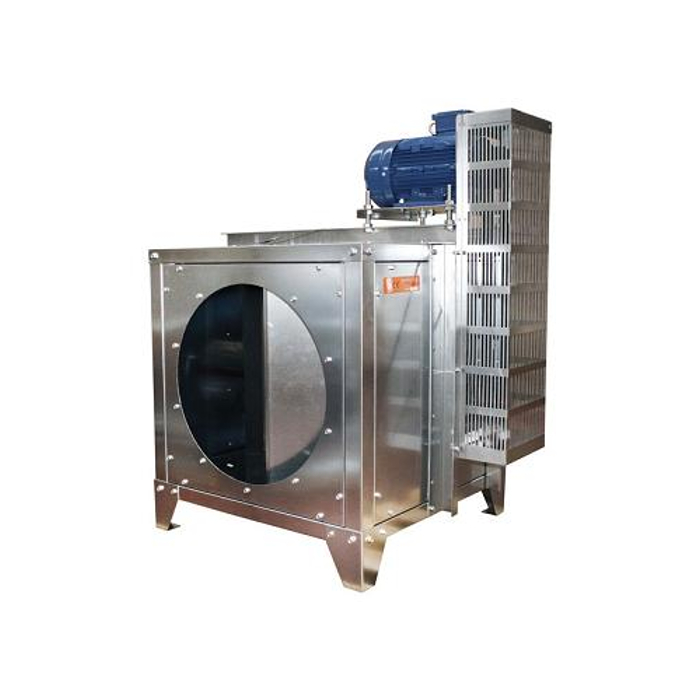

Dynair BOX-T HT Belt driven double inlet box fans F400

QUICK OVERVIEW

Construction

Dismountable cabinet in galvanized steel sheet. Double inlet impeller with forward curved blades in galvanized steel sheet
Belt coupling with self aligning supports, outside the airflow. Height adjustable motor support plate for the tensioning of the belt. Belt coupling is protected by a guard in galvanized sheet
Asynchronous three-phase motor, IP 55 mechanical protection, insulation class F, single or double polarity, suitable for S1 service, mounting type B3, construction according to IEC/EEC
(UNEL MEC)
Arrangement 9: belt coupling with motor placed on the upper panel
Arrangement 12: belt coupling with motor placed aside on a common basement (only for motors above 7.5kW)

Accessories

Rainproof cover for outdoor installation

CATALOGUE

Description

The belt driven double inlet BOX-T HT fans are destined to plants requiring fire smoke exhaust. They are suitable for conveying clean air and non dusty smokes up to the maximum temperature of 200°C in continuous service or in case of fire emergency at the temperature of 400°C for 120 minutes (F400).

The series is suitable for running at the temperature of +200°C in S1 service and CE certifi ed F400 according to EN12101-3 by the independent notify body Applus.

Upon request:

Version with double polarity motor.
