Description

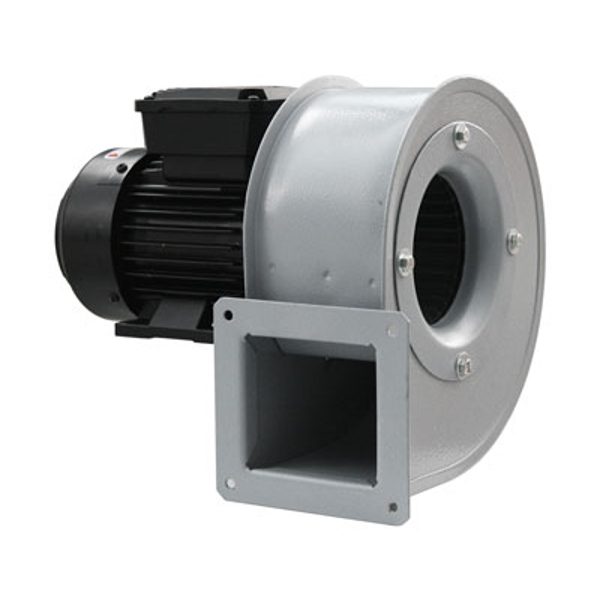

The centrifugal fans of the DIC series are designed to convey clean and not-dusty air and smoke with temperature range from 100°C to 150°C. They
are suitable for all the industrial applications where small air volumes and high pressures are required.
The series consists of different models with impeller diameter from 100 to 180 mm. The motor is directly fitted to the forward curved impeller. The casing is easily adjustable, also on site, to the required discharge angle every 45°, including 180° and 225° position.
upon request:
- Rotation RD upon request
Versions:
- DIC ATEX and DIC INOX ATEX versions according to Directives 94/9/CE and 2014/34/UE
- DIC INOX: corrosion resistance version, with casing, flanges and impeller in stainless steel AISI 304
