Description

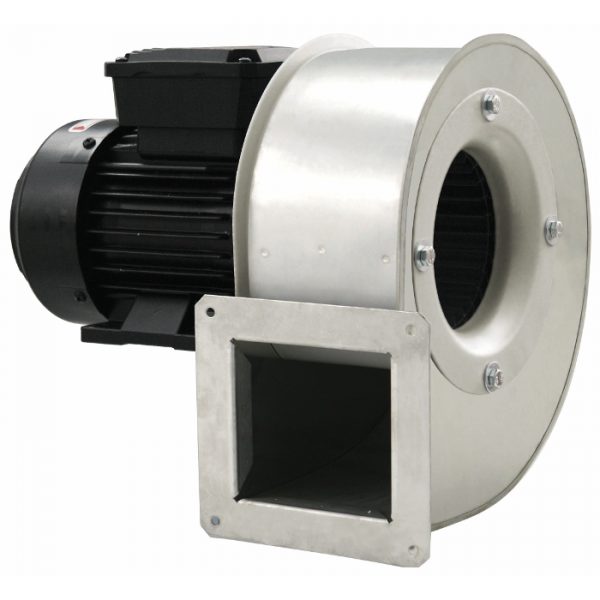

The centrifugal fans of the DIC INOX series are designed for conveyance of corrosive smoke with temperature range from -20°C to 80°C.
They are installed in all the industrial applications where small air volumes and high pressures are required. The motor is directly coupled.
The case is easily revolving, also at site, by 45° steps, 180° and 225° included.
Upon request:
- DIC-INOX 100 with asynchronous three-phase or single-phase motors according to international standards IEC 600034, IEC 60072, EMC 2014/30/UE, LVD 2014/35/UE, CE marked, IP 55, class F, B35 shape (DIC-INOX 100 MEC)
- Rotation RD upon request
- Version suitable to convey hot gases, up to 150°C maximum (DIC-INOX/AT).
Versions:
- DIC-INOX ATEX according to Directives 94/9/CE and 2014/34/UE
Installation:
The centrifugal fans with forward curved impellers must always be installed to ducted systems, eventually with the use of additional resistance (for example setting shutters), that can limit the airflow in such a way that the absorbed current is within the acceptable values stated on the motor rating label.
