Description

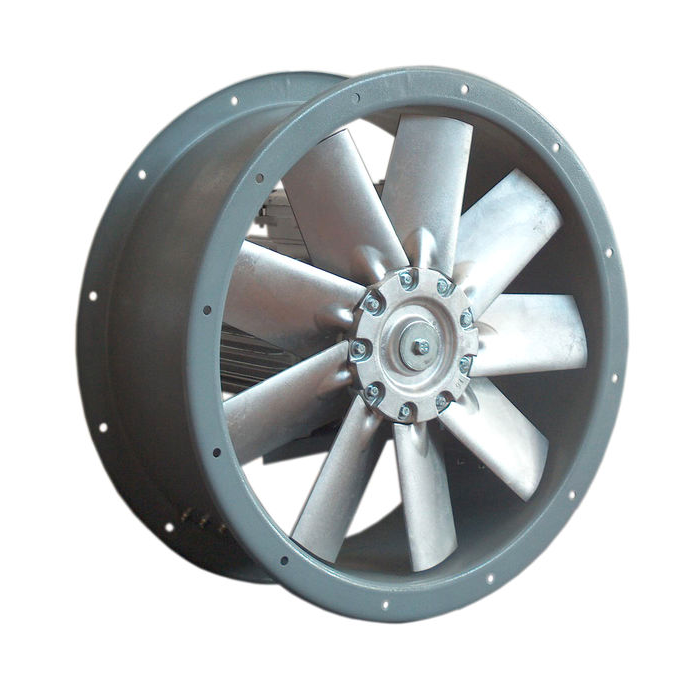

CC-HP are high performance ducted axial fans ideals for installations requiring large airflow with relatively low pressure drop, like ventilation and cooling systems. Easy to install, they are also particularly long lasting and robust because of the CFD designed high performance axial impellers with airfoil profile blades, totally made in die-cast aluminum.
CC-HP are available in a wide range of models with diameters from 400 to 1600 in 2,4,6,8 poles and versions 3,6,9 blades.
They are suitable for conveying clean air with temperatures from -15°C to + 50°C in continuous service.
Upon request:
- Airflow from impeller to motor
- Galvanized casing, steel sheet casing, lengths and special constructions
- Terminal junction box on the casing
- Versions with different voltage and frequencies
- Multistage co-rotating versions.
Versions:
- CC-HT : Versions for fire smoke extraction according to EN 12101-3
