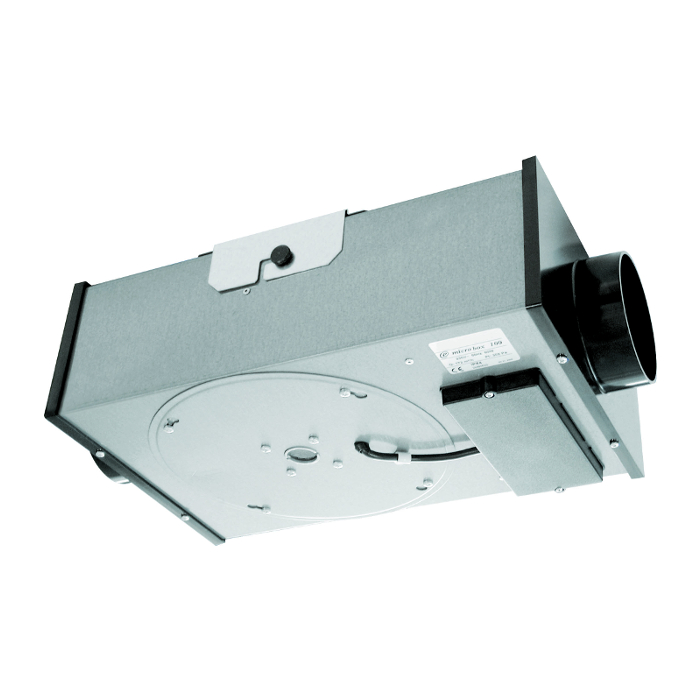

Dynair MICROBOX Centralized single flow extract ventilation

QUICK OVERVIEW

Construction

Casing in galvanised steel sheet inside lined with acoustic insulation.
Backward blade impeller for high efficiency and low noise level.
Wall/ceiling fixing kit for an easy and quick installation (Maico Italia patent).
Easy access to motor and impeller for inspection.
Supplied with plastic sealing rings for the spigots.
Compliance with EN 60335-2-80, B.T. 2014/35/UE, EMC 2014/30/UE
IPX4

Accessories

RLS 1 WR Remote control for the manual selection of the ventilation level (min / Intermediate / high). Suitable for Microbox EC.
RLS 3V Remote control for the manual selection of the ventilation level (min / Intermediate / high) and On/Off switch. Suitable for Microvox 3V AC.

CATALOGUE

Description

MICROBOX is a super-slim centrifugal box suitable for a whole-house extract ventilation.

Modular, extremely compact and super-silent, it is ideal for installation in void ceilings.
Suitable for conveying air up to a temperature of 50°C.

Operation: the stale air is exhausted from humid rooms (kitchen, bathroom, toilets, laundry). The fresh air is supplied by specific air entrance points.

Models:

Microbox 3V

AC motor
3 speed version with continuous running at the minimum speed
Speed are controllable through the accessory RLS 3V (available as accessory)

Microbox Control

AC motor
Speed controllable through the new VSD controller in a range from 100 to 246 m³/h.
The VSD is supplied with the fan.

Microbox EC

EC motor
Speed controllable through the accessory RLS 1WR (available as accessory) in a range from 125 to 310 m³/h.
