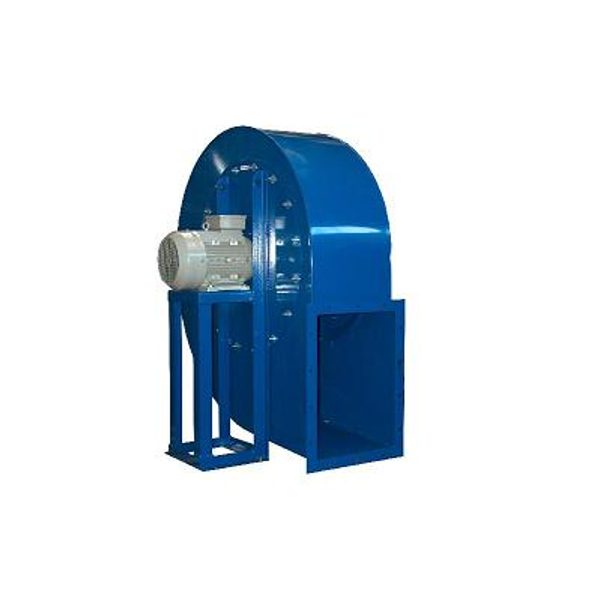

Dynair PS-L ATEX Backward curved blade centrifugal fans for dusty air

QUICK OVERVIEW

Construction

Volute casing in steel sheet, protected against atmospheric agents by epoxy paint. Connection flanges ISO 6580/EUROVENT 1-2
Aerodynamically shaped inlet cone
Single inlet backward curved wheel with high efficiency, manufactured in steel sheet and epoxy painted. For high rotational speed, versions in class 3 are foreseen
Execution 4 directly coupled and executions 1-9-12 with mono-block support in cast iron with ball bearings, designed for an ideal alignment of the ball bearings and an easy lubrication
Pulleys, belts and motor support suitable for the regulation of the belts tension. Belt protection guard according to EN12499
Asynchronous three-phase ATEX motors for explosive atmospheres category G group II thermal class T4 protection Exd according to international standards IEC 60034, IEC 60072, IEC60079 and/or 61241, EMC 2014/30/UE, LVD 2014/35/UE, CE marked, IP 55, Class F, B3 or B5 format and ATEX certified da Notify body. Suitable to S1 service (continuous working at constant load).

Accessories

Condensation drain hole (TS)
Inspection door (PI)
Inlet counter-flange (CFA)
Outlet counter-flange (CFP)
Inlet protection guard (RA)
Outlet protection guard (RP)
Inlet flexible connector (GA)
Outlet flexible connector (GP)
Inlet vane control
Outlet setting shutter
Anti-vibration mounts

CATALOGUE

Description

The fans of the PS-L ATX series are built-in conformity to the ATEX directive 94/9/CE and 2014/34/EU. They are suitable for installation in plants where the presence of inflammable gas makes necessary to guarantee a correct air exhaust avoiding the risk of explosion, in particular certified ATEX plants category 3, zone 2, zone 2-22 (3G/3GD) and category 2, zone 1 and zone 1-21 (2G/GD) in the respective constructions.

The series PS-L ATX is suitable for duct installations which move high airflow and medium pressure air such as electrical storage rooms, chemicalor petrochemical industries and so on.
They are suitable to convey air with temperature from -20°C to 40°C.

Upon request:

Version with volute and impeller in stainless steel AISI 304 or AISI 316
Versions with different temperatures
Versions with motors suitable for speed regulation
Versions with double polarity motors
