Description

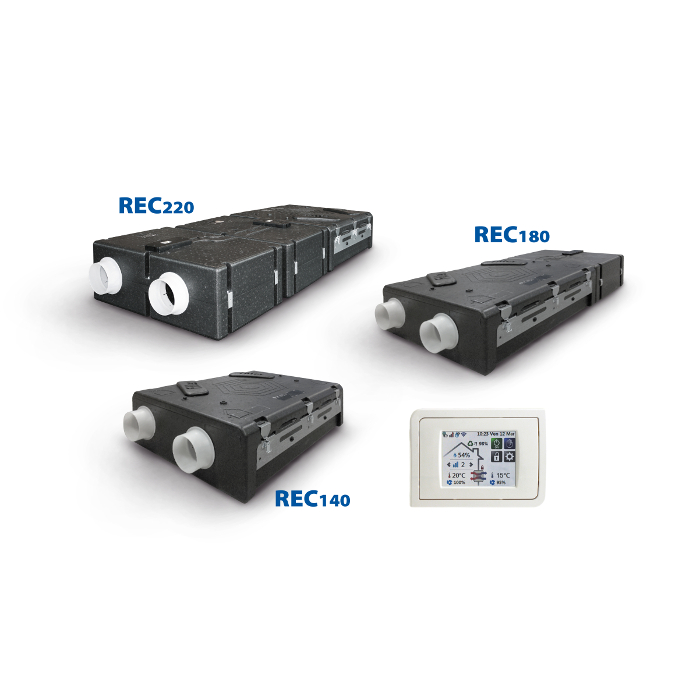

REC in linea is a series of compact and modular high efficiency centralized heat recovery units with thermal efficiency up to 91%.
Ideal for houses from 2 to 8 rooms, they are suitable for vertical installation and for ø 125 mm ducting system.
All models are provided with integrated by-pass.
REC in linea TC is supplied with a remote Panel Touch controller with coloured screen.
The panel allows to manually or automatically manage (through the weekly programming) the following functions:
- The Speed/ventilation level regulation
- The ventilation modality (by-pass function, freecooling, only extraction, only immission)
- The threshold humidity level over which the unit increases its speed
- The post-ventilation function (Timer function, adjustable from 0 to 30 minutes) to delay the switching of the unit at the minimum speed)
- The Sleep modality that allow to have the unit running silently at low speed during the night and supplied with the
Models:
REC IN LINEA 140
- Ideal for houses up to 4 rooms and average surface of 80 m2
- Installation configuration: 2 intake points and 2 extract points
- Max airflow 140 m3/h.
REC IN LINEA 180
- Deal for houses up to 6 rooms and average surface of 100 m2
- Installation configuration: 3 intake points and 3 extract points
- Max airflow 180 m3/h.
REC IN LINEA 220
- Ideal for houses up to 8 rooms and average surface of 120 m2
- Installation configuration: 4 intake points and 4 extract points
- Max airflow 220 m3/h.
