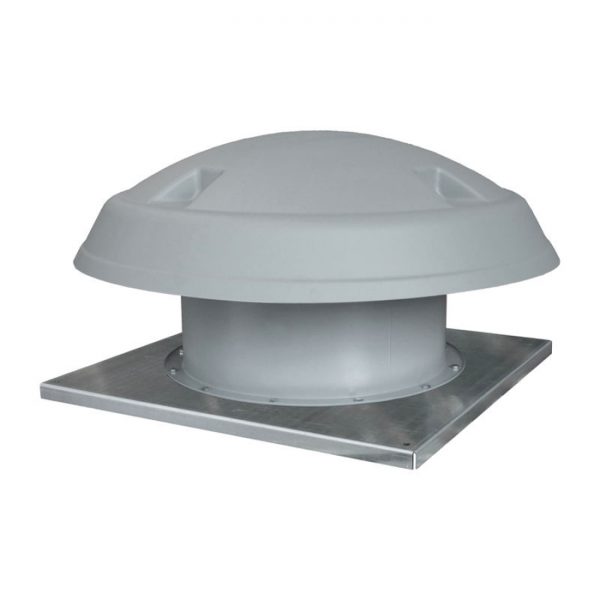

Dynair TACC Compact axial roof fans

QUICK OVERVIEW

Construction

  • Fixing base in galvanized steel sheet
  • Casing in steel sheet, epoxy coated
  • Axial impeller with aerofoil profile blades in glass reinforce polyamide and die-cast aluminium hub, balanced according ISO 1940. Variable pitch angle in still position with setting means
  • Weatherproof upper cover in fiberglass
  • Air flow from motor to impeller
  • Protection guard on outlet side, in steel rod, manufactured according to norms UNI 10615 and weatherproof
  • Asynchronous three-phase or single-phase motor according to international standards IEC 600034, IEC 60072, EMC 2014/30/UE, LVD 2014/35/UE, CE marked, IP 55, class F
  • All suitable to S1 service (continuous working at constant load)

Accessories

  • Inlet gravity shutter. (SA)
  • Counter-base to be walled up (CB)
  • Support base and Reduction (BA and RD)
  • Support base/Silenced reduction (PB)
  • Motor side protection grid (CCrc)

CATALOGUE

Categories: Axial roof fans, ErP Directive compliant fans, High temperature fans (200°C)
  • Description

Description

Axial roof fans suitable for extracting large air volumes.

Main features of TACC series are high strength, easy installation and maintenance, high efficiency

(thanks to axial impeller with airfoil blades).
This range has the possibility to be easily ducted and, if required, the possibility of making a version for air intake (with reverse flow).
The use of the TACC series is foreseen for clean air with temperature range from -15°C to 50°C.

Upon request:
Uppercover in aluminium (Max size TACC 800)
